87-93 Digital EZ Harness + Dakota Digital Box Installation Kit Bundle
If you are installing a Dakota Digital gauge system into your Foxbody Mustang, this is the the kit for you!
79 to 93 Foxbody Mustang Gauge Cluster Wiring Tables
Everything is sorted out for you including brackets that give you a ready made solution to mount your control box. This kit cuts install time dramatically while also giving you access to the control box after the install for any modules you wish to add down the road.
No need to destroy your factory wiring! Just plug on the Newrad Solutions connectors and wire it up to the the control box.
Use the Digital EZ harness to give you that professional touch for your aftermarket digital gauge installation! The connectors are a direct fit onto the factory 14-pin connectors in your dash. No need to hack up your OEM wiring and can be reversed in the future. Utilizing 18-AWG automotive grade TXL wire, the kit comes with wire loom and pre labeled wires with hardware to make your install EZ. The factory connectors often have minimal length wires which makes splicing even more of a head ache. We solve that problem for you! Save time and frustration with the Digital EZ harness installation kits.
Note: This kit can be used for both the 87-89 and 90-93 Mustangs. Follow wire instructions as some wires won’t be used based on year of your car.
Kit Includes:
Digital EZ harness connectors (x2)

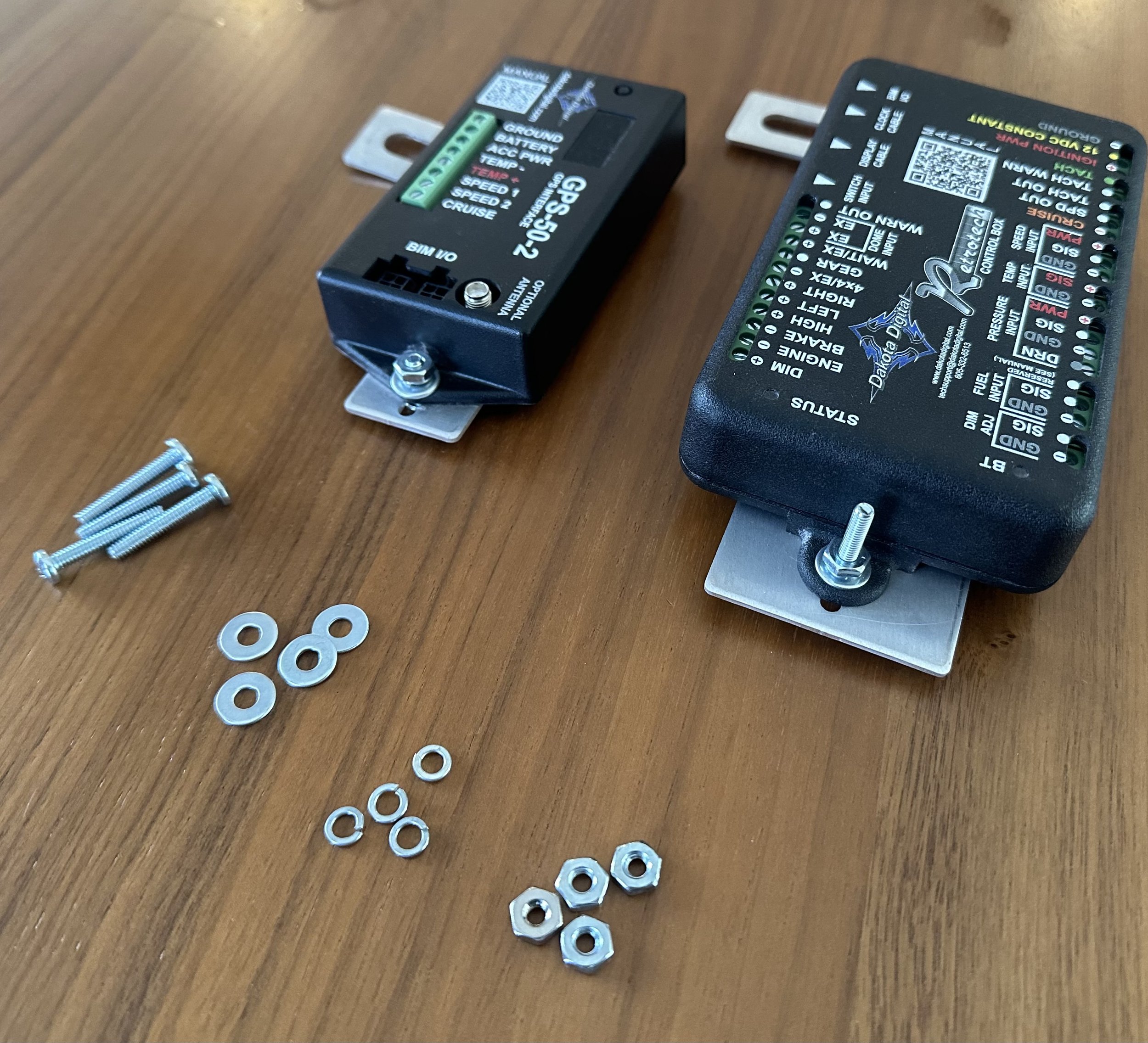

Brackets and hardware for mounting RTX/HDX/VHX control box and a GPS or other BIM box
Braided loom with shrink tubing
Zip ties
Heat shrink weatherproof butt connectors
T-tap wire tap for tapping VSS signal
Self-tapping screw (for ground connection to chassis ground)
Heat shrink weatherproof ring terminal for ground wire to chassis
Labeled wires for speed sender, ground, 12V power, & GPS power
ATC/ATO bladed fuse tap connector for connecting 12V power wire to fuse panel
NEWLY ADDED FEATURE: Heat Shrink numbered labels for custom touch
*Depending on your installation location & application extra butt connectors may be needed.
**Unused wire ends should be taped off or use shrink tubing.
*** U.S. Patent Pending
